Description

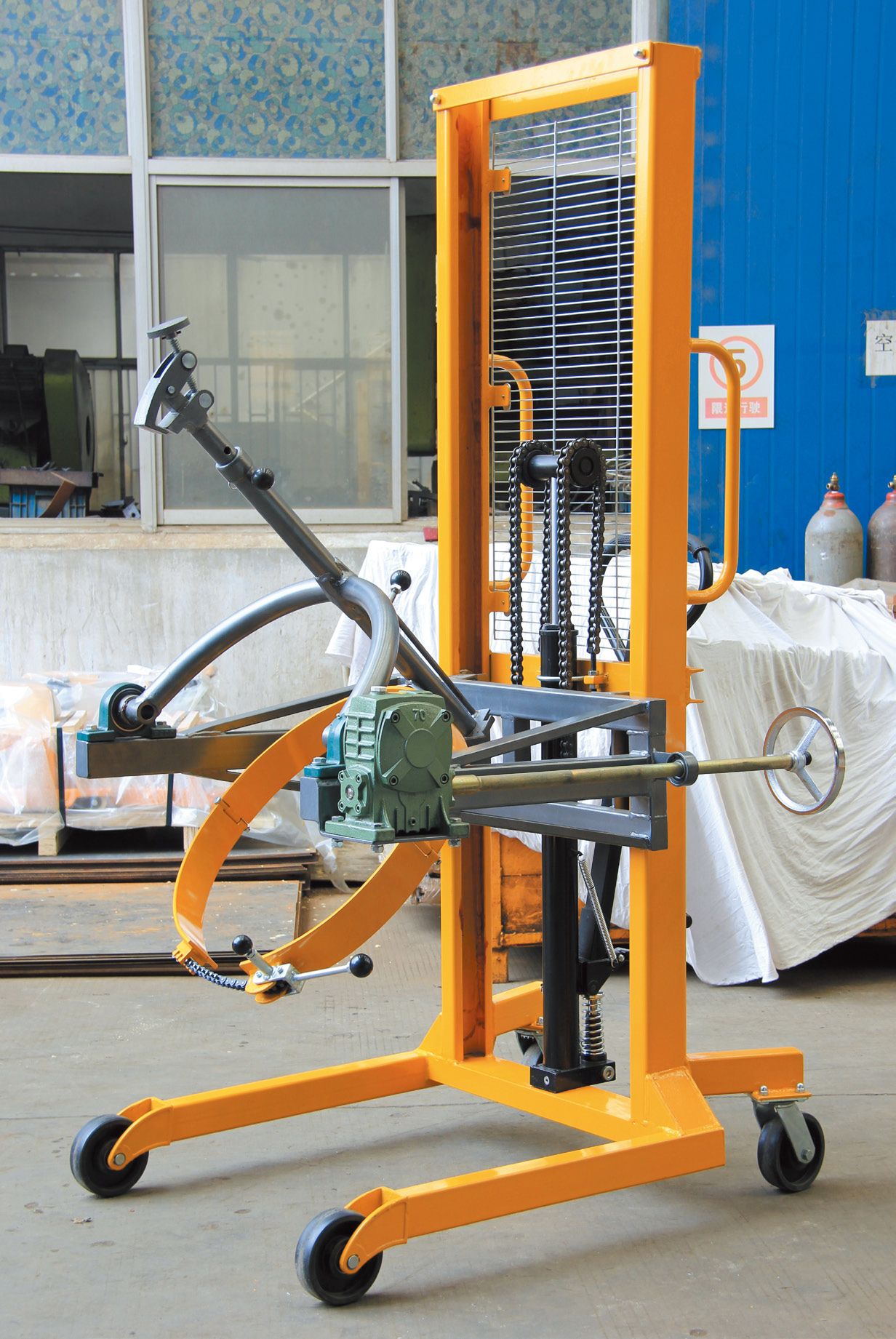

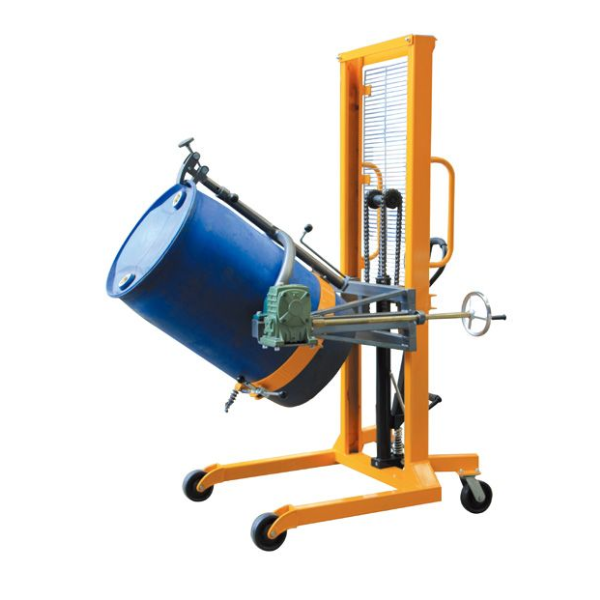

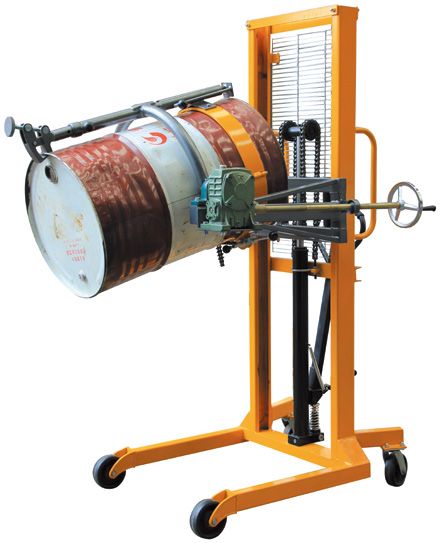

The new EcoWarrior WRDTPL45 drum lifting truck allows you to lift and control tilt drums in order to discharge the contents. The truck has a 3 position locking mechanism which allows you to safely hold the drum in the positioning cradle. The drum is supported around its circumference, on its top rim and under its bottom rim. There is a procedure to do the fixing in but once in place you can lift it to any height and then tilt it through 180 degrees if required. The unit is geared to prevent half filled drums from running away when the contents pass the half way point. This is a cost efficient way of emptying the contents into mixing vessels etc… Tilting the drum is via a hand wheel.
Specifications:
- Capacity: 450kg
- Maximum Lift Height: 1500mm
- Load Roller Size: 150 x 50mm diameter
- Steering Wheel Size: 150 x 50mm diameter
- Size Between Legs (Inner/Out): 630/810mm
- Leg Length: 770mm
- Overall Size (l x w x h): 1400 x 1000 x 2100mm
