Description

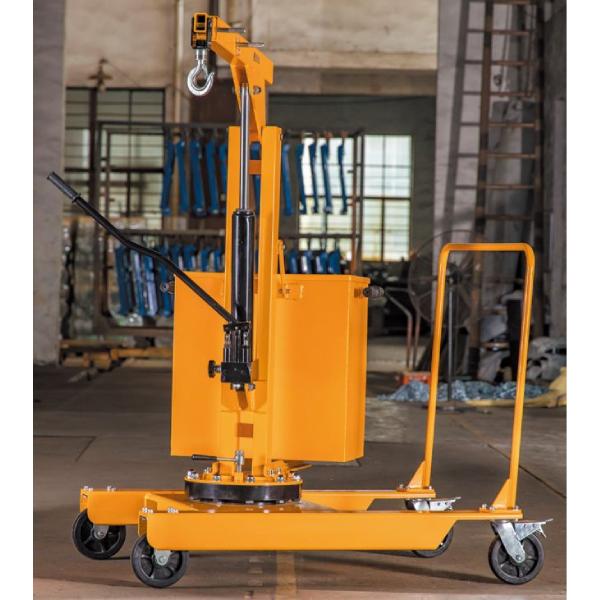

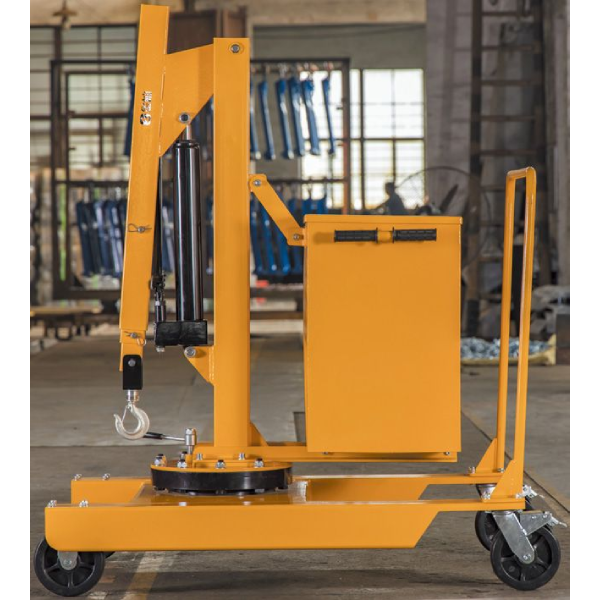

The EcoWarrior 550kg Manual Rotating Counterbalanced Workshop Crane with Slewing Jib is a mobile, free standing workshop crane which has the ability to safely slew its jib through 360 desgrees. The built in ballast weight which counterbalances the crane jib is mounted on a precision engineered slewing ring allowing maximum accessibility. It has a manually adjustable five position jib permitting amazing flexibility of load handling. Supplied with double acting hand hydraulic pump unit, swivel hook and adjustable knob together with a block valve to prevent overloading – easily manoeuvrable. Heavy duty design – tested 25% overload before delivery
Specifications:
- Capacity: 550kg @ 1900mm (minimum extension)
- Capacity: 450kg @ 2160mm
- Capacity: 350kg @ 2260mm
- Capacity: 250kg @ 2450mm
- Capacity: 150kg @ 600mm
- Balance Weight: 250kg
- Overall Dimensions: 1430 x 985 x 1630mm
- Wheel diameter: 200mm
- Turning radius: 977-2140mm
- CE Marked
