Description

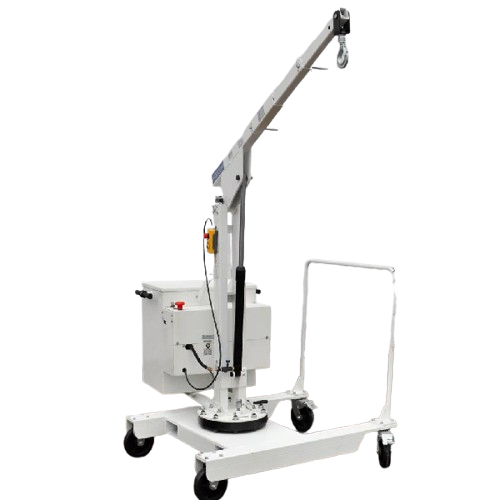

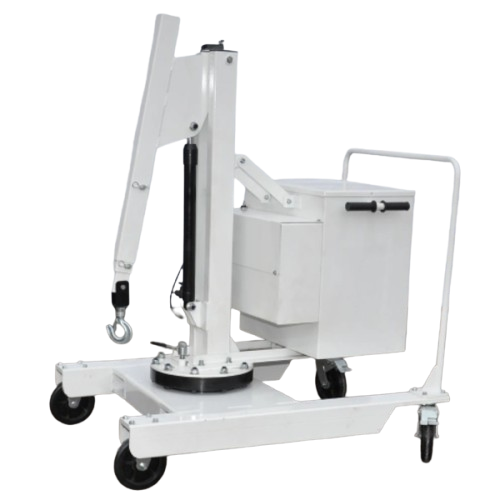

The EcoWarrior 550kg Semi-Electric Rotating Counterbalanced Workshop Crane with Slewing Jib delivers 360-degree jib rotation for full access in confined workshop areas. Its built-in counterbalance ensures stability without adding weights, mounted on a precision slewing ring. Additionally, the five-function hydraulic distributor enables smooth lifting, lowering, extension and retraction with adjustable speed control. This model also features a slewing jib for maximum flexibility Furthermore, this mobile model is ideal for sites demanding adaptable layouts. The unit also includes lockable rotation, a key switch with voltmeter and an emergency stop to maintain high safety standards. In addition, this crane’s design is compact and easy to manoeuver, offering a powerful alternative to fixed lifting systems. The EcoWarrior Semi-Electric Rotating Crane is supplied fully assembled with its counterbalance. Heavy duty design – tested 25% overload before delivery
Specifications:
- Capacity: 550kg @ 1900mm (minimum extension)
- Capacity: 450kg @ 2160mm
- Capacity: 350kg @ 2260mm
- Capacity: 250kg @ 2450mm
- Capacity: 150kg @ 600mm
- Balance Weight: 250kg
- Overall Dimensions: 1430 x 985 x 1630mm
- Wheel diameter: 200mm
- Fully charged time: 10 hours
- Turning radius: 977-2140mm
- Battery: 12V/60Ah lead acid
- Charger: 12V/8Ah external
- Power: 0.8kW
- CE Marked
