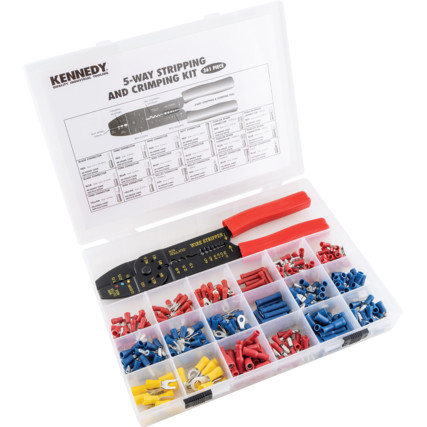

Description
This 361 piece terminals and crimping set boasts a 5-in-1 tool. The 240mm heavy gauge hardened carbon steel wire crimper has an anvil action cutters and PVC grip.
The multi-purpose tool also has capacity for insulation terminals in three sizes, 1.5mm² (red), 2.5mm² (blue) and 6.0mm² (yellow), it can be used as a wire cutter for wires of varying sizes (M2.6, M3.0, M3.5, M4.0 and M5.0mm), non insulated terminals 1.5mm², 2.5mm² 4.0 – 6.0mm² and possesses the ability to strip wires in sizes 0.75, 1.0, 1.5, 2.5, 4.0 and 6.0mm².

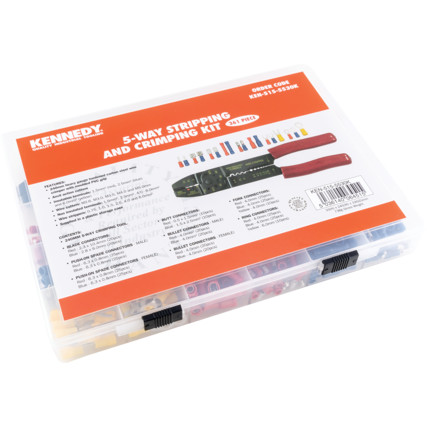

Supplied in a translucent plastic box to organise your tool and components.
Features and Benefits
• Comprehensive kit includes everything you would need for any and all electrical jobs
• Wire crimper tool is manufactured from heavy gauge carbon steel for maximum durability
• Crimping tool possesses PVC moulded grips for comfort and control whilst working
• Supplied in a compartmentalized, translucent box for ease of storage and organisation of your tool and components

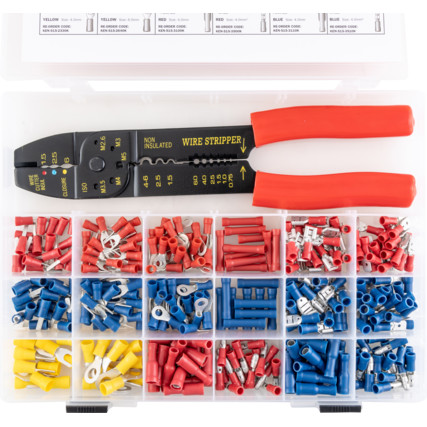

Contents
• 240mm 5-Way Crimping Tool
• Blade connectors: Red – 2.3 x 10.4mm (20 Pcs), Blue – 2.8 x 9.0mm (20Pcs)
• Push-on spade connectors – male: red – 6.3 x 0.8mm, blue – 6.3 x 0.8mm
• Push-on spade connectors – female: red – 6.3 x 0.8mm, blue – 6.3 x 0.8mm
• Butt connectors: red – 0.5 x 1.5mm2, blue – 1.5 x 2.5mm2
• Bullet connectors – male: red – 4.0mm2, blue – 4.0mm2
• Bullet connectors – female: red – 4.0mm, blue – 4.0mm
• Fork connectors: red – 4.0mm, blue – 4.0mm, yellow – 4.0mm
• Ring connectors: red – 4.0mm, blue – 4.0mm, yellow – 6.0mm
Typical Applications
• Electrical
| Property | Value |
|---|---|
| Capacity | Insulation Terminals: 1.5mm² (red), 2.5mm² (blue), 6.0mm² (yellow); Non-Insulated Terminals: 1.5mm² , 2.5mm², 4.0 – 6.0mm²; Wire Cutters: M2.6, M3.0, M3.5, M4.0 and M5.0mm; Wire Strippers: 0.75, 1.0, 1.5, 2.5, 4.0 and 6.0mm² |
| Compatible Connector | Insulated Terminals; Non-Insulated Terminals; Wire Cutter; Wire Strippers |
| Handle Cover Material | PVC |
| Includes | (10) Butt Connectors – Blue; (10) Butt Connectors – Red; (10) Fork Connectors – Yellow; (10) Ring Connectors – Yellow; (20) Blade Connectors – Blue; (20) Blade Connectors – Red; (20) Bullet Connectors – Female – Blue; (20) Bullet Connectors – Female – Red; (20) Bullet Connectors – Male – Blue; (20) Bullet Connectors – Male – Red; 240 mm 5-Way Crimping Tool; (25) Fork Connectors – Blue; (25) Fork Connectors – Red; (25) Push-On Spade Connectors – Female – Blue; (25) Push-On Spade Connectors – Female – Red; (25) Push-On Spade Connectors – Male – Blue; (25) Push-On Spade Connectors – Male – Red; (25) Ring Connectors – Blue; (25) Ring Connectors – Red; Supplied in a plastic storage case |
| Individual or Set | Set |
| Insulated | No |
| Jaw Material | Carbon Steel |
| Non Sparking | No |
| Number of Pieces | 361 |
| Overall Length | 240 mm |
| Tool/Jaw Features | Anvil Action Cutter |
| Tool Material | Steel |
| Type | Crimping Tool Kit |
| VDE | No |
