Description

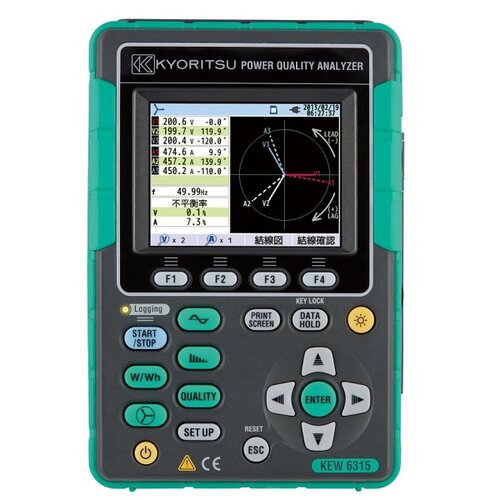

The KEW6315 enables you to monitor the power quality of a system, altering you to where costs could be saved and where unsafe conditions should be addressed.
The KEW6315’s quick report facility allows you to download and produce a report in 2 minutes. You can enter daytime and night-time tariffs to get the cost of the electricity used. You can even look at a subset of the data i.e. just Monday working hours.
Key Benefits:
- Simultaneous measurements; Data logging, harmonics, waveform, and events (transients, dips, swells, and interrupts) measured all in one go
- Extensive memory enables you to conduct extended surveys without the worry of running out of storage
- The quick report facility allows you to download and produce a report in 2 minutes and put a cost on energy used
- EN 50160 automatic report – again within moments a 17-page report compares the measured data with the supply standard highlighting any errors
- An intuitive user interface means that you will soon be up and running and remember the setting up procedure
- Remote monitoring on PC and Android devices via Bluetooth
- Simultaneous measurements mean that you do not have to do several surveys on the same site
- Complies fully to IEC61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V
- Includes everything to get you started; KEW6315, three (KEW8130) 1000A Flexi-clamps, four voltage test leads, PQA software, and SD card
Key Features:
- High accuracy measurements +/- 0.2% Volts/Current, 0.3% Energy
- Quick set up guide – on-screen guides and wiring check
- Instantaneous Values
- Measures Flicker
- Energy consumed
- Demand monitor / prediction
- Waveform and vector diagrams
- Harmonic measurements and analyzer
- Displays and calculates power factor and corrective capacitors
- Includes three 1000A Flexi-clamps accurate down to 1A
- Print screen function saves any screen, including connection diagram – for fast report writing
- Fourth current channel for measured neutral current (neutral current also calculated) or earth leakage
- Internal memory plus flashcard memory – up to 1GB!
- Digital output for use to control max demand
- Two additional inputs for external sensors. For instance to monitor lighting / temperature levels
