Description

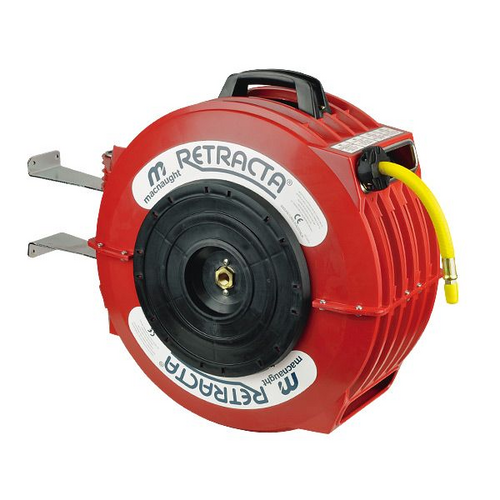

Macnaught Retracta spring rewind hose reels offer performance, reliability and versatility for all popular hose applications. Constructed in high impact UV stabilised polypropylene for all-purpose corrosion free durability, Retracta reels can be installed indoors or out. They are particularly suited to washdown applications in food processing as an alternative to conventional stainless steel reels. Each reel is supplied with fitted hose and a choice of lockable mounting brackets for wall, floor, bench or overhead installation. The sprung loaded latching mechanism allows latching of the hose at any length, whilst the low rewind tension makes the Retracta particularly easy to use.
All reels supplied with BU100 bracket for wall mounting to 1.8 mtr and overhead. For higher wall or bench/floor mounting specify BB100 bracket when ordering. Additional mounting brackets are available.
Features
- Tough, corrosion free polypropylene construction
- Lightweight – average just 10 kg, easy to install
- Supplied with fitted hose for specified application
- Choice of lockable mounting brackets
- Positive spring loaded latching mechanism
- Fully automatic hose rewind for neat and tidy storage
- Low effort easy-to-use rewind tension
- Virtually maintenance free
- Completely serviceable – all parts readily available
- 10 year warranty
Specifications
| Hose capacity | 50′ (15m) |
| Hose ID | 3/8” / 10mm |
| Max pressure | 180psi (12 bar) |
| Inlet/Outlet | 3/8” BSPF / 3/8” BSPM |
| Hose type | Reinforced NBR/PVC |
| Reel dimensions | W: 10″ x H: 171/2” x D: 23″ |
| Approx weight | 12kg / 26lb |
