Description

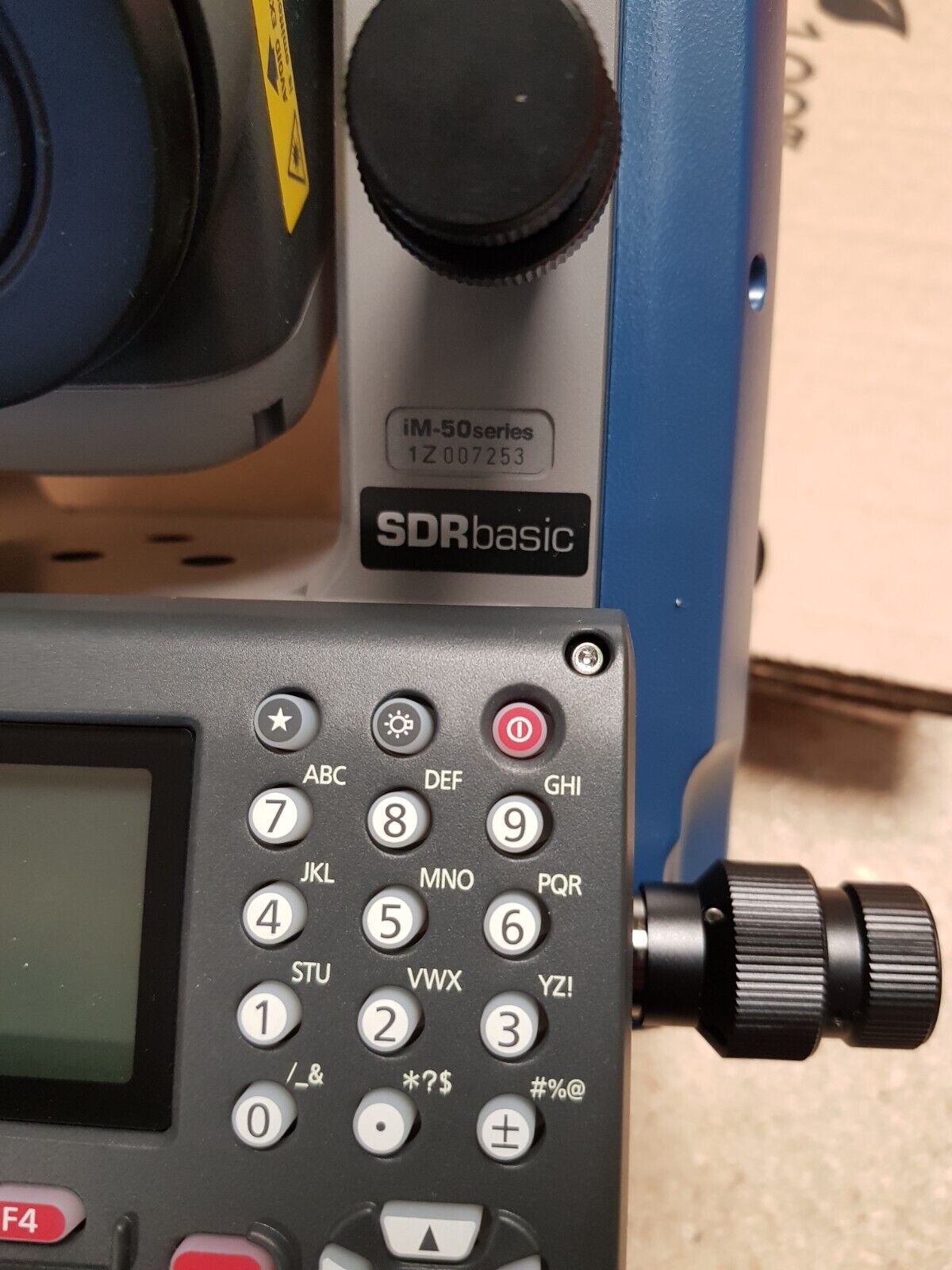

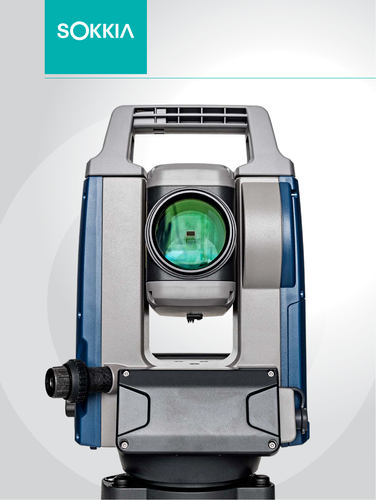

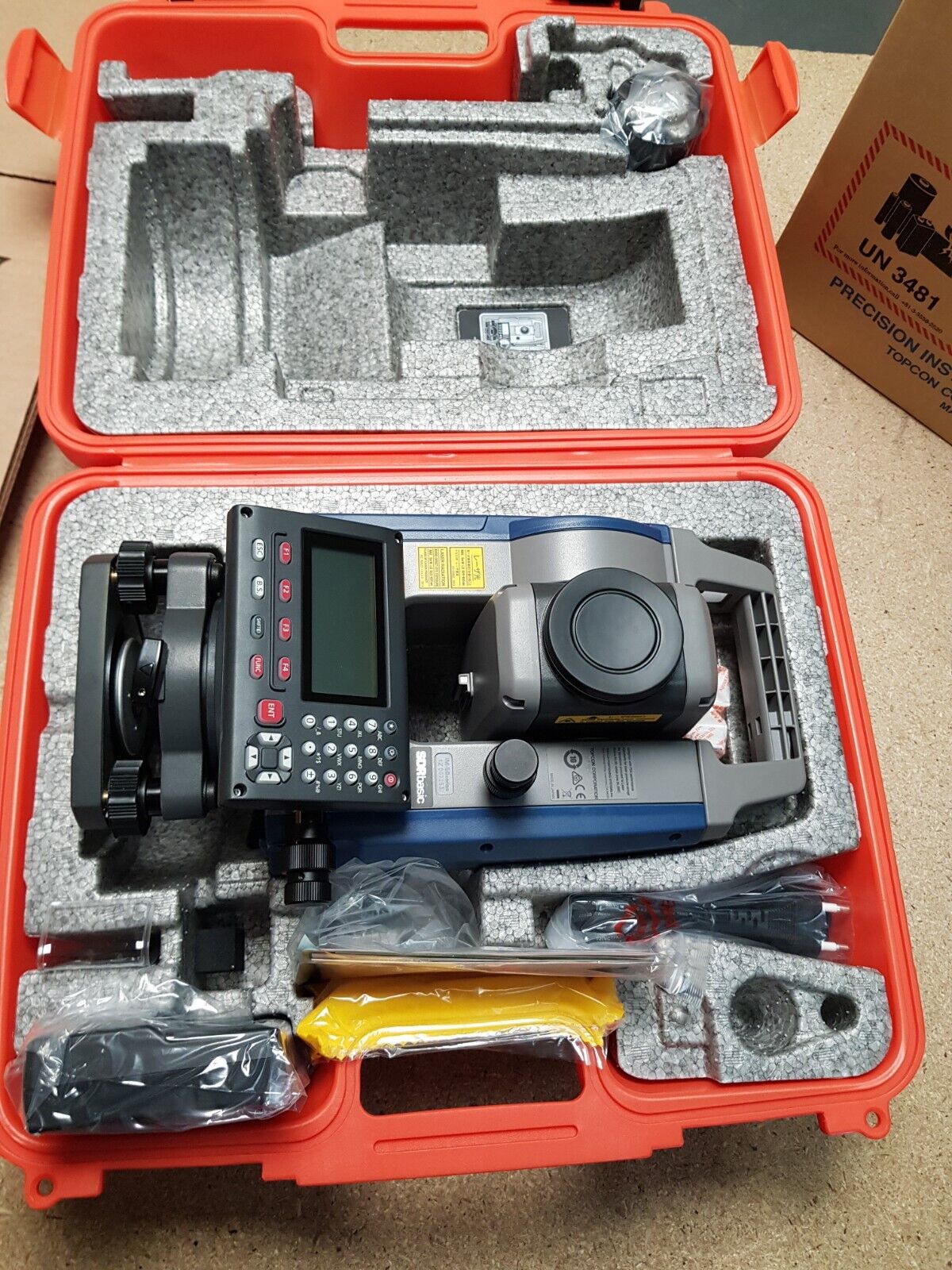

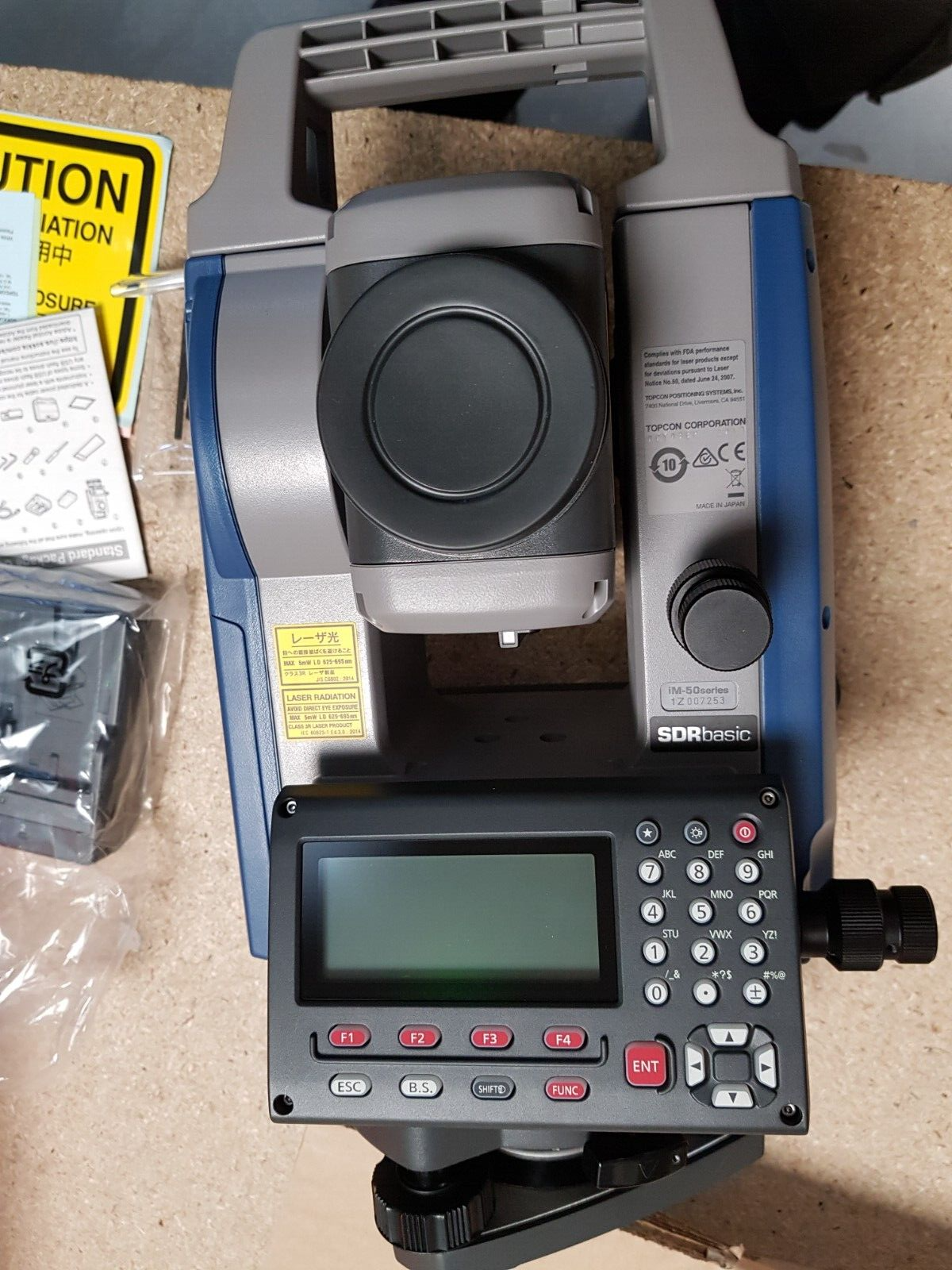

Sokkia iM-55 , 5″ Reflector-less Total Station
The iM-50 Series is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality.
The sleek design is built tough, with a water and dustproof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.
The iM-50 is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.
- Integrated Construction and Survey Application Software
- Fast, accurate, and powerful EDM
- Reflectorless up to 500m
- Prism range up to 4,000 m
- Advanced angle accuracy (2″ or 5″)
- Single display
- Instrument weighs 11.24 lb
USB Memory Up to 32 GB
Internal Memory 50,000 points
Reflectorless Up to 500 m
Prism Range Up to 4,000 m
Measuring Time Fast measuring time –
Fine: 0.9 s (Initial 1.7 s)
Rapid: 0.7 s (Initial 1.4 s)
Tracking 0.3 s (Initial 1.4 s)
Battery Life Up to 14 hours of battery life in Eco mode.
Condition: New
